UMD 48-5 Servo Motor Driver / Universal Motor Driver
Motor driver for voice coil, stepper or 3-phases motors 48V / 5A / 10 Apeak Encoder input TTL or Sin/Cos
VCCF 70-65 / Voice coil Cylindrical Concentrated Flux
Automation application: Mini-electrical press Voice coil Cylindrical Concentrated Flux System with encoder OD: 70m / H: 65mm / encoder: 1µm resolution Stroke: 10 mm / Continuous Force:41 N
MLZA 10-20 / 3-phases Ironless Motor
Semiconductor application: Testers / Placement / Die Bonding / Flying probe 3 phases ironless linear motor System with integrated encoder Magnetic circuit dimension: L: 64mm/ W: 30mm / H: 19mm Encoder resolution: 1µm Stroke: 20 mm / Continuous Force: 9.5 N
T110 family / Axial Flux Actuator
From 0.4Nm up to 1.5Nm peak torque temperature range -40°C to 150°C 30 G vibrations 20 Millions cycles tested Automotive qualified
HST-037-50 / 3-phases brushless spindle motor
Three phase brushless motor High motor efficiency: 91% 1250W: 800 mNm @ 20 krpm Motor constant Km: 67 mNm/W1/2 Dim.: OD: 37 mm / H_stator: 77mm Rotor integration into customer shaft Stator Height variant: 10 to 90 mm
HST-021-40 / 3-phases brushless spindle motor
Three phase brushless motor High motor efficiency: 93% 300W: 120 mNm @ 25 krpm Motor constant Km: 23 mNm/W1/2 Dim.: OD: 21,5 mm / H_stator: 52mm Rotor integration into customer shaft Stator Height variant: 10 to 50 mm
HST-024-60 / 3-phases brushless spindle motor
Three phase brushless motor High motor efficiency: 93% 600W: 240 mNm @ 25 krpm Motor constant Km: 37 mNm/W1/2 Dim.: OD: 24 mm / H_stator: 77mm Rotor integration into customer shaft Stator Height variant: 10 to 60 mm
S2MC 6-8 / Voice coil Flat
6 N continuous force / 8 mm stroke Design for supplier shortage
S2MC 7-12 / Voice coil Flat
7 N continuous force / 12 mm stroke Dynamic: Force/Mass ratio increased Force Control: Linearity over stroke Thermal exchange improved Smooth motion Smart mechanism integration

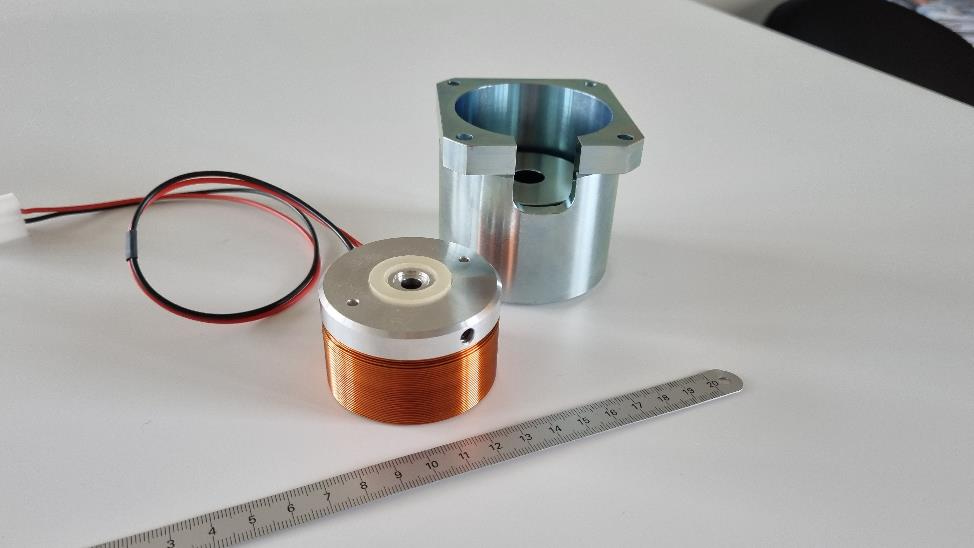

VC 380 / Voice coil Cylindrical Concentrated Flux
25 N continuous force / 10 mm stroke Co-design: integration cost reduction Dim.: OD: 60 mm / H_active: 30 mm
